1. MOQ: 1 Tons
2. Trade Terms: EXW, FOB, CIF, CNF, DDU, DDP, etc
3. Standard: GB, ASTM, JIS, AISI, DIN, BS.
4. Shipping: BY SEA
5. After-sales Service: Quality Objection Within 10 Days Since Receiving

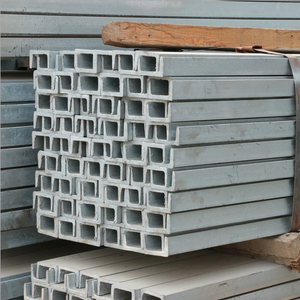

6. Shape: U channel/C channel
Product description
Material Standard | Q235B, A36,SS400, Q355B, Q355C, Q355D, Q355E, S235JR, S235J0, S235J2,S275JR, S275J0, S275J2, S355JR, S355J0, S355JR | |||||
Size(mm) | 50x37x4.5/63x40x4.8/65x40x4.8/80x43x5/100x48x5.3/120x53x5.5/140x58x6/ 140x60x8/160x63x6.5/160x65x8.5/180x68x7/180x70x9/200x73x7/200x75x9/ 220x77x7/220x79x9/250x78x7/260x80x9/280x82x7.5/280x84x9.5/300x85x7.5/ 300x87x9.5/320x88x8/320x90x10/400x100x10.5/400x102x12.5 | |||||
Technique: | Hot Rolled,Welding, Cold bending | |||||
Section: | C channel,U channel | |||||
Surface treatment | untreated(black), hot-dipped galvanized ,powder coated, electroplate, painting or as per customers' requirement. | |||||
Test: | SGS,BV and so on | |||||
Packing | (1) LCL(less than one container load): packed with plastic film then on the pallets (2) FCL(full container load): nude packing (3) Other special package :according to customers' requirements. | |||||
Payment Term | 1.100% irrevocable L/C at sight. 2.30% T/T prepaid and the balance against the copy of B/L. 3.30% T/T prepaid and the balance against L/C | |||||
Type | Height | Width | Thickness | Theoretical weight | ||
5# | 50 | 37 | 4.5 | 5.438 | ||
6.3# | 63 | 40 | 4.8 | 6.634 | ||
8# | 80 | 43 | 5.0 | 8.045 | ||
10# | 100 | 48 | 5.3 | 10.007 | ||
12# | 120 | 53 | 5.5 | 12.059 | ||
12.6 | 126 | 53 | 5.5 | 12.319 | ||
14#a | 140 | 58 | 6.0 | 14.535 | ||
14#b | 140 | 60 | 8 | 16.733 | ||
16#a | 160 | 63 | 6.5 | 17.24 | ||
16#b | 160 | 65 | 8.5 | 19.752 | ||
18#a | 180 | 68 | 7 | 20.174 | ||
18#b | 180 | 70 | 9 | 23 | ||
20#a | 200 | 73 | 7 | 22.637 | ||
20#b | 200 | 75 | 9 | 25.777 | ||
22#a | 220 | 77 | 7 | 24.999 | ||
22#b | 220 | 79 | 9 | 28.453 | ||
25#a | 250 | 78 | 7 | 27.41 | ||
25#b | 250 | 80 | 9 | 31.335 | ||
25#c | 250 | 82 | 11 | 35.26 | ||
28#a | 280 | 82 | 7.5 | 31.427 | ||
28#b | 280 | 84 | 9.5 | 35.832 | ||
28#c | 280 | 86 | 11 | 40.219 | ||
30#a | 300 | 85 | 7.5 | 34.463 | ||
30#b | 300 | 87 | 9.5 | 39.173 | ||
30#c | 300 | 89 | 11.5 | 43.883 | ||
32#a | 320 | 88 | 8 | 38.083 | ||
32#b | 320 | 90 | 10 | 43.107 | ||
32#c | 320 | 92 | 12 | 48.131 | ||
36#a | 360 | 96 | 9 | 47.814 | ||
36#b | 360 | 98 | 11 | 53.466 | ||
36#c | 360 | 100 | 13 | 59.118 | ||
40#a | 400 | 100 | 10 | 58.928 | ||
40#b | 400 | 102 | 12.5 | 65.208 | ||
40#c | 400 | 104 | 14.5 | 71.488 |
Packing & Delivery
Packing | 1.By steel strips in bundles |
2.By woven cloth with 7 slats | |
3.By woodenn pallet | |
4.Accorging to the requirements of customers |
Delivery | By sea | 1.In bulk ( based on 200tons) |
2.20ft container: 25tons (Length limted 5.8m MAX) | ||
3.40ft container:(Length limted 11.8m MAX) | ||
By air | UPS/DHL/FEDEX | |
By truck | as customer ruquests |
