What Are C Purlins? Functions, Uses, and Installation Basics

In the realm of modern industrial construction, structural integrity and cost-efficiency are the cornerstones of successful project management. Metal buildings, ranging from expansive warehouses to specialized agricultural sheds, rely heavily on secondary framing members to bridge the gap between primary structural frames and the outer cladding. Among these components, cold-formed steel sections play a pivotal role in ensuring that roofs and walls can withstand environmental loads while remaining lightweight and easy to assemble.

C Purlins are horizontal structural members shaped like the letter C, manufactured through cold-rolling galvanized or black steel, primarily used to support roof panels and wall cladding in metal construction. Their unique profile allows them to provide high strength-to-weight ratios, making them essential for creating stable, long-lasting framing systems in industrial, commercial, and residential steel buildings.

Understanding the nuances of C Purlins—from their structural behavior under load to the specific installation techniques required for maximum safety—is vital for engineers, contractors, and procurement specialists. This comprehensive guide explores the functions, advantages, and technical specifications of C Purlins, helping you determine if they are the right choice for your next steel framing project.

Executive Summary of Sections

1.0 What Is C Purlin?

A C Purlin is a secondary structural steel member characterized by its C-shaped cross-section, consisting of a web, two flanges, and two return lips, designed to provide support for walls and roofs in steel-framed buildings.

Commonly referred to as C-sections, these components are manufactured through a cold-rolling process. This method involves feeding long strips of steel through a series of rollers at room temperature to achieve the desired shape. Unlike hot-rolled steel, cold-formed C Purlins maintain a high degree of dimensional accuracy and a smooth surface finish.

In the hierarchy of a steel building, C Purlins sit between the primary rigid frames (beams and columns) and the exterior skin (metal sheets). They are responsible for transferring the weight of the roof and environmental loads, such as snow and wind, to the main structure. High-quality C Purlins are often galvanized to prevent rust, ensuring the building remains secure for decades.

1.1 C Purlin’s Structure and Functions

The structure of a C Purlin consists of a flat web, two parallel flanges, and inward-curving lips that increase the stiffness of the section, allowing it to act as a robust beam for span support.

The "lips" are perhaps the most critical part of the C Purlin design. Without these small returns at the edge of the flanges, the steel would be prone to local buckling under relatively light loads. The inclusion of lips allows for a thinner gauge of steel to be used while maintaining a high moment of inertia, which is a fancy way of saying it resists bending effectively.

Functionally, C Purlins serve as the "skeleton" for the building's envelope. On the roof, they provide the attachment points for roof panels. On the walls, they are often called "girts" and provide the framework for side cladding. They also play a major role in the lateral bracing of the primary frame, preventing the main rafters from twisting or leaning under extreme pressure.

1.2 C Purlins for Metal Buildings: Load Transfer, Stability, and Support

C Purlins ensure the stability of metal buildings by creating a continuous load path from the external cladding to the primary structural steel, effectively managing both vertical gravity loads and lateral wind forces.

When wind hits the side of a warehouse, the pressure is first absorbed by the metal siding. This force is then transferred to the C-shaped girts. The girts, in turn, transfer that load to the main columns. This "chain" of force distribution is what prevents building collapse during storms. Without properly spaced and sized C Purlins, the exterior skin would simply crumble or blow away.

Stability is also provided through the way these purlins are bolted to the rafters. By using cleat plates and high-strength bolts, the C Purlins tie the various primary frames together. This creates a unified "diaphragm" effect across the roof, which is essential for resisting seismic activity. The use of C Purlins in this capacity is a standard practice in modern pre-engineered metal buildings (PEMB).

1.3 Key Advantages of C Purlins

The primary advantages of C Purlins include their exceptional strength-to-weight ratio, ease of fabrication with pre-punched holes, and the ability to be nested for efficient transportation and storage.

One of the biggest draws for contractors is the "bolt-and-go" nature of these sections. Most manufacturers provide C Purlins with pre-punched holes based on the engineering drawings. This eliminates the need for on-site welding or drilling, which drastically reduces labor costs and increases safety on the job site.

1. Lightweight Construction: Being made of cold-formed steel, they are much lighter than hot-rolled I-beams, reducing the overall weight of the building.

2. Corrosion Resistance: Most C-sections are hot-dip galvanized (Z120-Z275 coatings), making them ideal for harsh environments.

3. Versatility: They can be used for both roofing and wall framing, as well as for door frames and floor joists in light-gauge steel construction.

1.4 Possible Limitations of C Purlins

The limitations of C Purlins mainly involve their inability to be overlapped for continuous spans and their lower torsional stability compared to closed sections or Z-purlins.

Unlike Z-purlins, which have one flange slightly wider than the other to allow for nesting and overlapping at the supports, C Purlins must be "butted" together or lapped with a sleeve. This means they are generally less efficient for very long continuous roof runs where "lapping" provides a significant boost to the load-carrying capacity at the support points.

Furthermore, because the C-section is an "open" profile, it can twist if it isn't braced correctly. Under heavy loads, the center of gravity is not aligned with the shear center, which can lead to lateral-torsional buckling. To mitigate this, engineers must specify sag rods or bridging to keep the C Purlins straight and true.

2.0 Are C Purlins the Right Choice for Roofing in Metal Buildings?

C Purlins are an excellent choice for roofing in metal buildings that require simple span configurations, particularly in smaller structures or those where the aesthetic of a clean, squared-off frame is preferred.

In many standard metal building designs, C Purlins are used because they are easy to align. Because the flanges are symmetrical, they sit flush against the rafters and provide a flat surface for the roof panels. They are particularly popular in "purlin sheds" and residential steel homes where the spans between the main frames are relatively short (usually under 6 or 7 meters).

However, the decision depends on the specific engineering requirements of the roof. If the roof is designed as a continuous system to save on steel weight, C-sections might not be the first choice. But for most mid-range industrial projects, the simplicity and availability of C Purlins make them a top contender for roof framing.

2.1 Key Difference Between C Purlins and Z Purlins

The fundamental difference lies in their shape and overlapping capability: C Purlins are shaped like a 'C' and cannot be nested for overlapping, whereas Z Purlins are shaped like a 'Z' to allow for nesting at support points.

Because Z Purlins can overlap at the rafters, they effectively double the thickness of the steel at the point of highest stress. This allows Z-sections to carry more weight over longer spans compared to a C-section of the same depth. This makes Z-purlins the industry standard for massive warehouses and distribution centers.

In contrast, C Purlins are often preferred for wall girts or for roofs with independent bays. The C-shape provides a cleaner finish for the interior of the building, as there are no protruding flanges pointing in opposite directions. For many builders, the choice between C and Z comes down to the span length and the total load the roof must support.

2.2 Possible Limitations of C Purlins when Used in Purlin Sheds

When used in purlin sheds, C Purlins may face limitations in span distance and may require more frequent bridging to prevent sagging or twisting under heavy snow loads.

In a typical shed construction, the purlins are often the only thing holding the roof up between the gable ends. If the shed is wide, the C Purlins must be quite deep (e.g., C200 or C250) to prevent excessive deflection. If the span is pushed too far without intermediate support, the roof may "bounce" or even fail under extreme weather conditions.

Additionally, because C-sections are not "continuous" across the rafters, the connections at each rafter are critical. If a bolt looses or a cleat bends, there is no redundant support from an overlapping section. This makes the quality of the installation and the thickness of the steel (gauge) paramount in shed applications.

2.3 Are C Purlins Suitable for Roofing?

Yes, C Purlins are highly suitable for roofing, provided that the span calculations and load requirements are verified by an engineer to ensure the section modulus is sufficient for the intended use.

They are especially suitable for roofs with a pitch, as they provide a stable base for the fasteners used to secure metal roofing sheets. In many agricultural and industrial settings, the C-section is the standard because it is widely available and the installation process is well-understood by local crews.

When using C Purlins for roofing, it is common to see them paired with galvanized finishes to protect against condensation that often forms on the underside of metal roofs. When combined with proper insulation and sag rods, a C-purlin roof system is both durable and cost-effective for almost any metal building application.

3.0 Summary: Are C Purlins Suitable for Roofing?

In summary, C Purlins are a versatile and reliable roofing solution, offering a balance of structural strength and ease of installation, though they are best suited for projects where overlapping at the supports is not required.

Choosing C Purlins means opting for a straightforward framing system. They are ideal for "bay-by-bay" construction where each section of the roof is handled independently. While they may require slightly thicker sections than Z-purlins for the same span, the ease of handling and the clean lines they provide often outweigh the slight increase in material weight.

3.1 C Purlins vs Z Purlins — A Structural and Application Comparison

From a structural standpoint, Z Purlins offer better continuity and load distribution for large-scale projects, while C Purlins provide better ease of use for wall framing and smaller roof spans.

The engineering behind these two shapes is quite different. The Z-section's point of symmetry is the center of the web, whereas the C-section is mono-symmetrical. This means that C-purlins have a tendency to rotate under load, which is why bridging is so important. Z-purlins are more stable in this regard because the opposing flanges help balance the forces.

However, in wall applications (girts), C Purlins are almost always preferred. Their flat backs allow them to be bolted easily to the outside of columns, providing a perfectly flat plane for the installation of wall panels. For window and door openings, C-sections are also easier to box together to create headers and jambs.

3.2 Summary of C Purlins vs Z Purlins — Characteristics and Applications

4.0 C Purlins — Applications and Recommendations

C Purlins are recommended for a wide array of construction projects, primarily serving as the secondary framework for industrial warehouses, agricultural barns, and commercial storefronts.

Because of their adaptability, you will find C Purlins in everything from backyard workshops to massive aircraft hangars. They are not just for roofs; they are also used as floor joists in multi-story steel buildings and as mezzanine supports. Their ability to be cut to precise lengths means they can be tailored to any building footprint.

1. Industrial Warehouses: Used as girts to support massive wall areas and as roof purlins for standard spans.

2. Agricultural Buildings: Perfect for grain stores and livestock sheds due to their galvanized protection against moisture and ammonia.

3. Solar Racking: Increasingly used as the base rails for large-scale ground-mounted solar arrays.

4. Residential Steel Framing: Used as rafters and floor joists in modern "kit" homes.

For those looking for high-quality materials, sourcing C Purlins from reputable suppliers ensures that the steel meets the necessary yield strength requirements (typically G450 or G550) for these demanding applications.

5.0 How to Select the Right Purlin Size? C Purlin Dimensions and Lengths

Selecting the right C Purlin size involves matching the section depth and thickness to the expected span length and the total load (dead, live, and wind) specified in the building’s structural design.

Size selection is not a "one size fits all" process. A C100 (100mm deep) purlin might be fine for a small garden shed, but an industrial warehouse with a 6-meter span between rafters will likely require a C200 or C250. The thickness, or "gauge," also varies, usually ranging from 1.5mm to 3.0mm.

Engineers use load tables provided by manufacturers to determine the maximum allowable span for a specific section. These tables account for "deflection," which is how much the purlin will bend under load. For a roof, you typically want to limit deflection to L/150 or L/200 to prevent the metal sheets from pulling away from the fasteners.

5.1 Key Factors in Selecting Purlin Size

The key factors include the span between primary frames, the spacing between individual purlins, the local wind speed zone, and the weight of the roofing material being used.

1. Span Length: This is the distance between the main steel beams. As the span increases, the depth of the C Purlin must increase exponentially to maintain strength.

2. Purlin Spacing: Typically spaced between 600mm and 1500mm. Closer spacing allows for lighter purlins but increases labor and fastener costs.

3. Environmental Loads: Areas prone to heavy snow or high cyclones require significantly beefier sections to prevent structural failure.

5.2 Common Framing System Types and Their Impact on Purlin Selection:

The type of framing system—whether simple span, continuous span, or cantilever—drastically changes how the C Purlins distribute stress and which size is required.

In a Simple Span system, each purlin spans between two supports. This is the most common use for C-sections. It is easy to calculate but requires thicker steel because there is no help from adjacent spans. This system is common in small buildings and residential extensions.

In a Continuous Span system (more common with Z-purlins), the members run across multiple supports. If C-purlins are used here, they must be joined with heavy-duty sleeves to mimic the strength of a continuous beam. This allows for thinner sections but makes the connection points much more critical.

5.3 Calculating Number of Purlins:

To calculate the number of purlins required, divide the total length of the roof slope by the recommended spacing (plus one for the eave/ridge), ensuring all panel laps are properly supported.

For example, if you have a roof slope that is 6 meters long and your engineer recommends a spacing of 1.2 meters:

6 / 1.2 = 5 spaces.

Adding one for the start of the slope means you need 6 purlins per side of the roof.

It is also important to consider the "overhang" at the eaves. If the roof panels extend past the last purlin, that purlin will carry more load and may need to be a heavier gauge. Always ensure that the ridge (the top of the roof) has a pair of purlins closely spaced to support the ridge capping.

5.4 Recommended C Purlin Dimensions and Maximum Spans:

*Note: Spans are approximate for light loads; always consult a structural engineer.

6.0 How to Choose the Right C Purlins for Your Project

Choosing the right C Purlins requires a careful assessment of the building's geographic location, its intended use, and the specific material certifications provided by the manufacturer.

It is not just about the size; it is about the "spec." If you are building a chemical storage facility, you will need a much higher level of galvanization than if you are building a dry-goods warehouse. If you are in a coastal area, the salt air will eat through standard black steel in a matter of months, making high-zinc coatings mandatory.

Furthermore, always check the yield strength of the steel. In the B2B market, some suppliers may offer cheaper C Purlins made from lower-grade steel. Ensure your supplier provides test certificates (MTC) proving that the steel meets the ASTM or AS/NZS standards required by your local building codes.

6.1 Architectural Design and Loading Requirements

The architectural design dictates the spacing and orientation of the C Purlins, while the loading requirements determine the minimum thickness and depth needed to ensure safety.

If the design includes heavy items like HVAC units, solar panels, or suspended ceilings, these "dead loads" must be added to the calculation. A roof that looks fine on paper might fail once a heavy industrial fan is bolted to the C Purlins.

Architects also care about the "lip" direction. In some designs, the purlins are "turned out" to allow for a specific type of insulation or to hide the flange behind a wall finish. These aesthetic choices must be balanced with the engineering reality that purlins are most stable when the web is perpendicular to the load.

6.2 Material Specification

The material specification for C Purlins usually focuses on high-tensile cold-rolled steel with a specific mass of zinc coating to ensure long-term structural performance.

Standard grades like Q235 or Q355 are often used in international trade, but high-tensile variants like G450 are becoming the norm for purlin production because they allow for thinner, lighter sections without sacrificing strength. This makes the C Purlins easier to transport and install.

6.3 Corrosion Resistance

To ensure longevity, C Purlins should be treated with hot-dip galvanization or specialized powder coatings, especially in environments with high humidity or chemical exposure.

The "Z" number (e.g., Z275) refers to the grams of zinc per square meter of steel. For most indoor industrial applications, Z120 or Z180 is sufficient. However, for outdoor use or open-sided sheds, Z275 is highly recommended. For the most extreme cases, aluminum-zinc alloy coatings (Galvalume) provide even better protection.

7.0 What Are Traditional Metal Purlins?

Traditional metal purlins were often heavy, hot-rolled channels or I-beams, which have largely been replaced by modern cold-formed C and Z sections due to the latter’s weight and cost advantages.

In the early days of steel construction, builders used the same heavy steel for the purlins as they did for the main frames. While this was incredibly strong, it was also incredibly heavy and expensive. It required cranes for every part of the installation and put massive stress on the foundations.

Today, the industry has shifted almost entirely to "thin-walled" cold-formed steel. By using clever geometry (the C-shape and the lips), we can achieve the same structural result with a fraction of the steel. This shift has made steel buildings much more accessible for small businesses and private landowners.

8.0 Metal Purlin Structural Principle

The structural principle of a C Purlin relies on its geometry to resist bending moments and shear forces, using the vertical web to carry the load and the horizontal flanges to provide stiffness against lateral forces.

When a load is applied to the top flange, the top of the purlin wants to shorten (compression) and the bottom wants to stretch (tension). The web's job is to keep these two flanges at a fixed distance. The "lips" prevent the flanges from curling inward or outward, which would cause the whole section to buckle.

Because the C-section is "open" on one side, it is naturally unsymmetrical. This causes the "shear center" to be outside the web, which creates a twisting motion (torsion) when the purlin is loaded. Engineers solve this by using sag rods or by bolting the purlin to the roof sheets, which acts as a "stiffener" to keep the purlin upright.

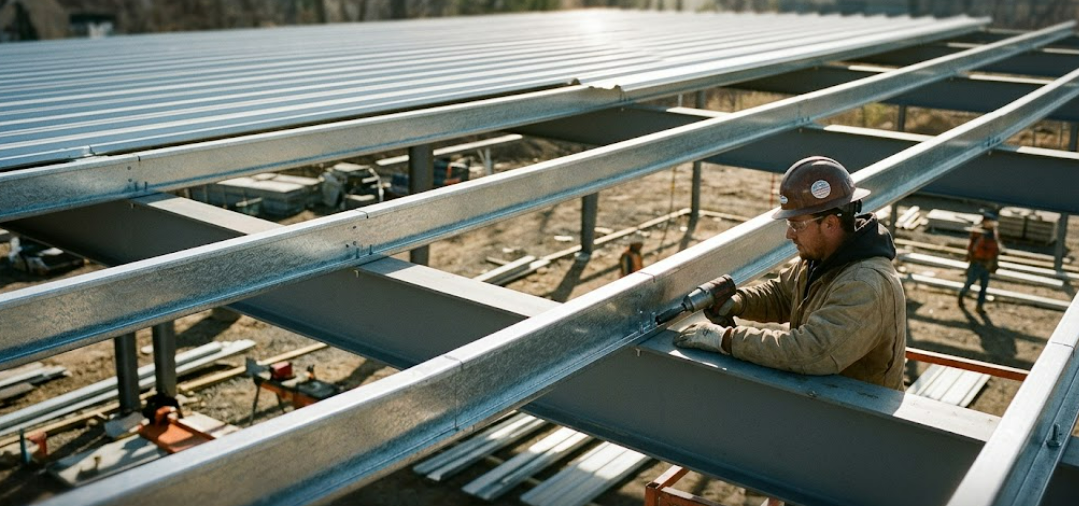

9.0 Purlin Installation: Metal Purlin Installation Guide

Successful purlin installation requires precise alignment, the use of high-strength bolts, and the implementation of bridging or sag rods to ensure the framing remains straight and capable of carrying its design load.

Installation begins after the primary frames (rafters) are plumb and leveled. C-purlins are lifted into place—often by hand for smaller sections or by a small telehandler for larger ones—and bolted to "cleats" that are pre-welded onto the rafters.

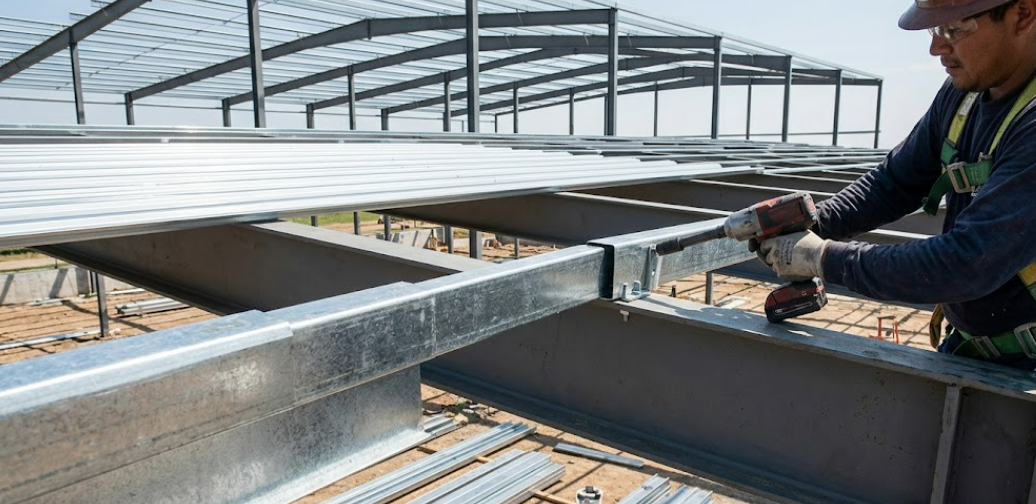

9.1 Purlin Fixing and Connection

Purlins are fixed to the primary rafters using cleat plates and M12 or M16 high-strength bolts, ensuring that each connection is tight to prevent structural vibration.

It is vital that the bolts are not over-tightened to the point of deforming the thin-gauge steel, but they must be secure enough to prevent any movement. Most C Purlins use a "double-bolt" configuration at each end to prevent the purlin from rotating. If the building is in a high-wind area, "oversize" washers might be used to prevent the bolt heads from pulling through the steel.

9.2 Installation Direction Norms

The standard installation direction for C Purlins is to have the 'open' side of the C facing up the slope of the roof, which helps manage the gravitational and torsional forces more effectively.

This might seem counter-intuitive, but facing the open side "up-hill" helps the purlin resist the tendency to sag downward and twist. For wall girts, the direction is usually dictated by the cladding type, but the "flange-down" orientation is common to prevent dust and moisture from collecting inside the C-channel.

9.3 Installation Precautions

Key precautions include never walking on un-fastened purlins, ensuring all sag rods are installed before the roof sheets are applied, and checking for "sweep" or bowing along the length of the purlin line.

Safety is the number one priority. C Purlins are not designed to support the weight of a worker until they are fully bolted and braced. Many accidents occur when installers attempt to "walk the purlins" before the system is tied together. Use temporary wooden planks or safety nets during the early stages of roofing.

10.0 Metal Purlin Materials and Surface Treatment

The materials used for C Purlins are typically high-grade carbon steel strips that undergo a continuous galvanizing process to provide a protective barrier against oxidation.

The base metal is typically a structural grade steel with a yield strength of 250MPa to 550MPa. The higher the yield strength, the thinner the steel can be while performing the same job. This is why "High-Tensile" purlins are so popular in the B2B sector—they save money on shipping and material costs.

Surface treatments include:

• Pre-Galvanized: The most common; steel is galvanized before being rolled.

• Hot-Dip Galvanized: The whole purlin is dipped after fabrication; best for maximum protection.

• Primer Painted: Used for indoor environments where aesthetics are more important than corrosion resistance (rare for purlins).

11.0 C Purlin Section Dimensions and Structural Properties

Technical dimensions for C Purlins include the web height (H), flange width (B), lip length (L), and the steel thickness (t), all of which contribute to the section’s moment of inertia and radius of gyration.

For an engineer, the most important numbers are the Ix (Moment of Inertia) and the Zx (Section Modulus). These numbers tell the designer exactly how much weight the beam can hold before it fails or bends too much. These properties are calculated based on the precise geometry of the C-shape.

When ordering C Purlins, you must specify these dimensions clearly. For example, a "C20015" typically means a 200mm deep section with a 1.5mm thickness. Standardizing these codes helps ensure that the materials delivered to the site match the engineering blueprints exactly.
