How to connect lipped channels c purlins together?

In modern steel construction, the structural integrity of a building often rests on the precision of its secondary framing. C Purlins, specifically lipped channels, are horizontal beams used to support the load from the roof deck or sheathing. Because these components are manufactured in specific lengths for transport, connecting them effectively is essential to create a continuous structural member that can span long distances across multiple portals or rafters.

To connect lipped channels C purlins together, the most common and effective method is using a sleeved connection or a lapped connection secured with high-strength structural bolts. A sleeve—a slightly larger or smaller section of C channel—is nested over the joint where two purlins meet, and bolts are passed through pre-drilled holes in the webs to ensure a rigid, load-transferring bridge between the two segments.

Properly joining these sections is not merely about physical attachment; it is about maintaining the structural flow of forces. This guide will explore the technical nuances of connecting C Purlins, the various configurations used in industrial steel buildings, and the critical quality standards required to ensure long-term stability and safety.

Table of Contents

• Understanding Lipped Channels C Purlins

• Connection Methods for C Purlins

• Factors to Consider When Connecting Purlins

• Quality Assurance and Installation Best Practices

• Conclusion

Understanding Lipped Channels C Purlins

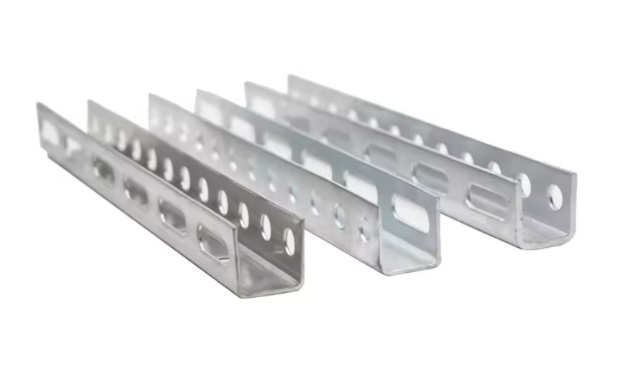

Lipped channels C purlins are cold-formed steel members characterized by a web, two flanges, and two return lips that significantly increase the stiffness and load-bearing capacity of the section compared to unlipped channels.

The primary role of C Purlins in a building is to act as a bridge between the primary structural frames (rafters or columns). By incorporating a "lip"—a small vertical return at the edge of the flange—the steel gains a much higher moment of inertia. This means the purlin is less likely to buckle or twist under the weight of the roofing material or environmental loads like snow and wind. Understanding this geometry is the first step in learning how to join them, as the lips prevent simple nesting unless specific techniques are used.

In industrial applications, these components are favored for their high strength-to-weight ratio. Because they are cold-formed, they can be manufactured to very tight tolerances, which is vital when aligning bolt holes across a 12-meter span. For those looking for high-quality components, exploring C Purlins can provide insight into the standard dimensions available in the market.

Furthermore, the "C" shape is non-symmetrical, which influences how it reacts to gravity loads. When connecting two sections, the orientation of the "C" must be consistent to ensure that the shear center of the combined beam remains predictable. Improperly aligned connections can lead to eccentric loading, which may cause the purlin to rotate or "roll" under stress, compromising the entire roof system.

Connection Methods for C Purlins

The most reliable connection methods for joining C purlins include the sleeve connection, where a separate channel piece bridges the gap, and the butt joint with cleat plates, which is typically used at the rafter support points.

1. The Sleeve Connection

This is perhaps the most common method for creating a "continuous" span. Since C Purlins of the same size cannot naturally lap (nest) into one another due to the lips, a "sleeve" is used. This sleeve is a short piece of C-section, either slightly smaller to fit inside or slightly larger to fit outside the main purlins. The two purlins are brought end-to-end, and the sleeve is bolted through the web of both sections. This creates a rigid joint that can handle bending moments effectively.

2. Lapped Connections (Interlocking)

While Z-purlins are designed for lapping, C Purlins can be joined via a lap if one section is slightly reduced in size at the end (swaged) or if the lips are removed locally. However, this is less common in standard B2B construction because it alters the structural properties of the section. Most engineers prefer the sleeve method to maintain the integrity of the lipped profile. When sourcing materials, check the compatibility of sections at C Purlins to see if sleeve options are provided.

3. Cleat and Bracket Connections

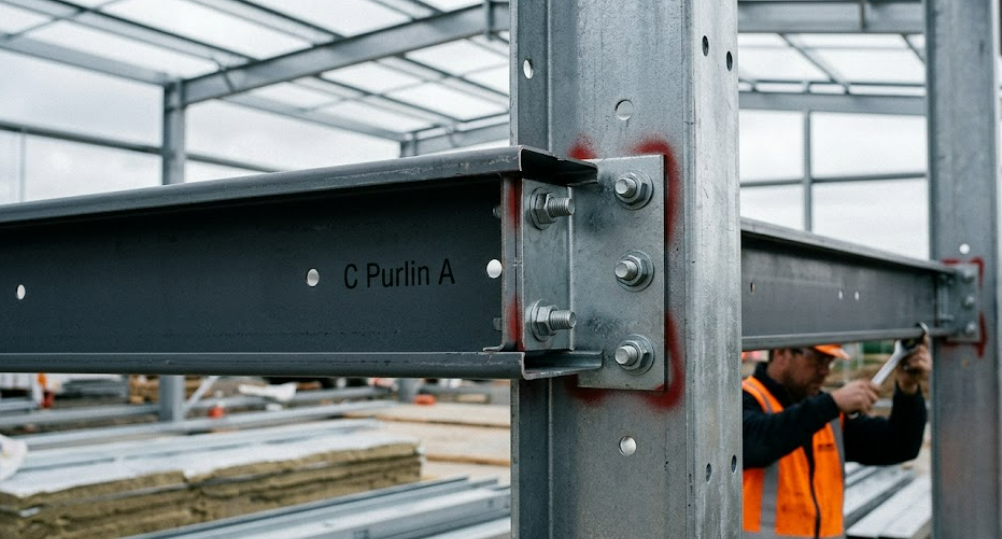

At the point where the purlin meets the main steel rafter, a "cleat" (usually an L-shaped bracket) is welded or bolted to the rafter. The C Purlins are then bolted to this cleat. When two purlins meet at a rafter, they are often bolted to opposite sides of the same cleat or joined with a sleeve that is itself attached to the cleat. This ensures that the connection point is supported by the primary frame of the building.

Factors to Consider When Connecting Purlins

Critical factors when connecting C purlins include the span type (simple vs. continuous), the thickness of the steel, and the specific hole patterns required to meet local structural engineering codes.

The choice of connection depends heavily on whether the purlin is designed as a "simple span" (supported at two ends) or a "continuous span" (running across three or more supports). Continuous spans are more efficient and allow for smaller C Purlins sections, but they require much more robust sleeve connections at the joints to handle the negative bending moments that occur over the internal supports. If the connection is too weak, the efficiency of the continuous design is lost.

Material thickness is another vital consideration. If you are using light-gauge steel, the risk of "bearing failure"—where the bolt tears through the thin steel web—is higher. In these cases, larger washers or thicker sleeve plates are necessary to distribute the load over a wider area. It is essential to match the grade of the connector to the grade of the main C Purlins for Sale to avoid galvanic corrosion or mechanical mismatch.

Technical Considerations Checklist:

1. Expansion and Contraction: In very long buildings, steel expands and contracts with temperature changes. Some connections may need slotted holes to allow for minor movement without buckling the purlins.

2. Bolt Grade: Always use high-strength structural bolts (e.g., Grade 8.8 or higher). Standard hardware store bolts do not have the shear strength required for industrial framing.

3. Hole Alignment: Misaligned holes lead to "forcing" the fit, which introduces pre-stress into the steel and can lead to premature failure.

Quality Assurance and Installation Best Practices

Quality assurance in connecting C purlins involves verifying bolt torque, ensuring proper galvanized coating integrity at the joints, and confirming that the lip orientation matches the architectural blueprints.

Before installation begins, the site manager must ensure that all C Purlins have been punched with the correct hole patterns. Modern CNC fabrication allows for precise hole placement, which is crucial for sleeve connections. Once the purlins are hoisted into place, the bolts must be tightened to the specific torque requirements set by the engineer. Under-tightening leads to structural "slip," while over-tightening can strip the threads or damage the zinc coating on the steel.

Corrosion protection is the second pillar of quality assurance. Since C Purlins are often galvanized, any drilling or cutting done on-site exposes raw steel to the elements. These areas must be treated with a cold-galvanizing spray to prevent rust. This is especially important at the connection points where moisture can get trapped between the sleeve and the purlin web. For long-lasting projects, sourcing pre-galvanized C Purlins for Sale ensures a baseline of protection.

Finally, the alignment of the lips must be checked. Lipped channels are designed to resist specific types of stress. If a purlin is installed "upside down" or with the lips facing the wrong direction at a connection, its load capacity can drop by more than 30%. Consistent inspection during the assembly phase prevents these costly errors.
