Comparing Z & C Purlins In Construction

In the modern structural engineering landscape, the integrity of a building often rests on the components that support the roof and wall cladding. Secondary framing members, specifically purlins, play a vital role in transferring loads from the building envelope to the primary steel frame. Among the various cold-formed steel profiles available, Z and C purlins are the most prevalent, each engineered with unique geometric properties to address specific architectural and load-bearing requirements. Understanding the nuances of these structural sections is essential for contractors and developers aiming to optimize material efficiency and structural performance in industrial or commercial projects.

The primary difference between Z and C purlins lies in their shape and structural versatility: C purlins are shaped like the letter C and are primarily used for simple spans in walls or roofs, while Z purlins resemble the letter Z, allowing them to be lapped for continuous spans, which significantly increases their load-bearing capacity and structural efficiency over long distances.

Choosing the right profile involves a deep analysis of span lengths, overlapping requirements, and the specific orientation of the building. While both profiles are manufactured from high-tensile galvanized steel to ensure durability and corrosion resistance, their application varies based on the complexity of the building’s framework. This comprehensive guide will explore the technical specifications, installation advantages, and key differences between these two essential construction components to help you make an informed decision for your next steel structure project.

Table of Contents

• Different Steel Angles Used for Purlins

• Z Purlin vs C Purlin: Which Angle Purlin Do You Need?

• Difference Between C Purlins & Z Purlins

• Advantages of Using High-Quality Purlins in Steel Buildings

• Installation Best Practices for Secondary Framing

• Choosing the Right Material for Long-Term Durability

• Conclusion

Different Steel Angles Used for Purlins

Steel purlins are horizontal structural members designed to support the loads from the roof deck or sheathing, and they are typically manufactured in C, Z, and Sigma shapes to provide varied levels of structural rigidity and ease of installation.

In the realm of steel construction, the choice of purlin angle and shape is dictated by the architectural design and the environmental loads the building must withstand. Cold-formed steel sections are preferred because they offer a high strength-to-weight ratio compared to hot-rolled sections. While the term "angle" often refers to L-shaped steel, in the context of purlins, it describes the web and flange relationship of C and Z sections. These members are precisely engineered to resist bending and provide a stable platform for the attachment of C Purlins and other cladding materials.

The versatility of these shapes allows for various framing configurations. For instance, in simple portal frame buildings, these steel sections are spaced at regular intervals to create a secondary grid. This grid is essential for preventing the primary rafters from buckling under heavy snow or wind loads. By selecting the correct steel angle and thickness (gauge), engineers can minimize material usage while ensuring the safety and longevity of the structure.

Beyond the standard C and Z shapes, some specialized projects may utilize Hat channels or U-channels for lighter applications. However, for industrial warehouses and large-scale agricultural buildings, the structural integrity provided by heavy-duty C and Z sections remains the industry standard. These sections are typically pre-punched with holes to facilitate rapid assembly on-site, reducing labor costs and improving construction timelines.

Common Types of Purlin Profiles

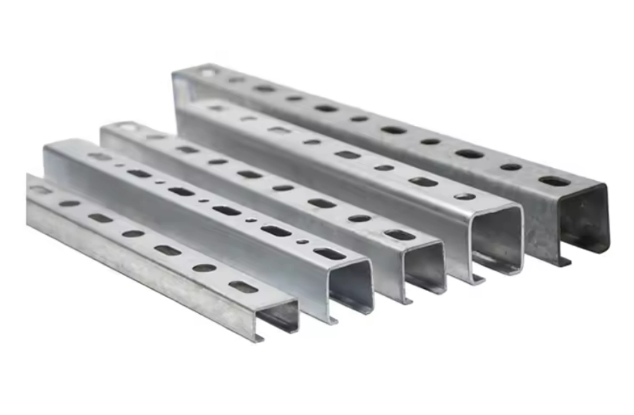

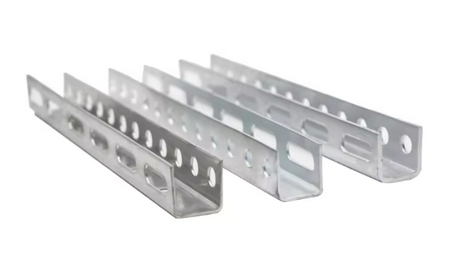

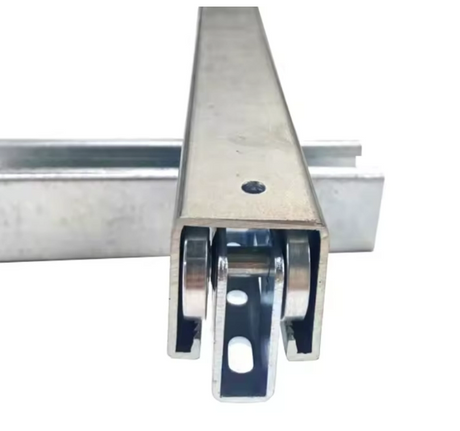

1. C-Section Purlins: Ideal for simple spans and wall framing where lapping is not required.

2. Z-Section Purlins: Designed with unequal flanges to allow for lapping, creating a continuous beam effect.

3. Sigma Purlins: A more complex profile used for extremely long spans requiring maximum stiffness.

4. Channel Sections: Often used in light-duty framing or as eave struts.

Z Purlin vs C Purlin: Which Angle Purlin Do You Need?

Deciding between Z and C purlins depends primarily on whether your project requires simple, independent spans (C-shape) or continuous, overlapped spans (Z-shape) to handle higher structural loads across multiple supports.

The decision-making process for selecting a purlin profile starts with the structural engineer's load calculations. If the building design features a series of single spans where the purlins do not need to overlap, C Purlins are often the most straightforward choice. They are easy to install against flat surfaces and provide a clean look for wall girts. Because the flanges are equal in length, they are stable and easy to handle during the bolting process to the cleats of the main frame.

However, for larger structures where efficiency and strength are paramount, Z purlins offer a significant advantage. Because one flange is slightly smaller than the other, one Z purlin can be "nested" or lapped into the next. This overlapping at the support points creates a continuous beam across the rafters. A continuous beam is structurally more efficient than a series of simple beams, allowing for thinner steel or wider spacings between rafters, which can lead to substantial cost savings on large-scale industrial projects.

Furthermore, the orientation of the building and the type of roofing system play a role. For example, if you are installing a standing seam roof, the stability provided by the lapped joints of Z purlins can provide a more rigid substrate. Conversely, for side walls or smaller sheds, the simplicity of the C-profile makes it a favorite for contractors who want to avoid the complexity of overlapping and specialized bolting patterns.

Criteria for Selection

1. Span Length: Use Z-sections for longer, continuous spans to improve load distribution.

2. Installation Simplicity: Choose C-sections for straightforward, non-overlapping applications like door headers or simple girts.

3. Weight Requirements: Z-sections often allow for a lighter gauge of steel due to the strength gained through lapping.

4. Budget Constraints: While Z-sections save on total steel weight, C-sections may reduce labor complexity on smaller jobs.

Difference Between C Purlins & Z Purlins

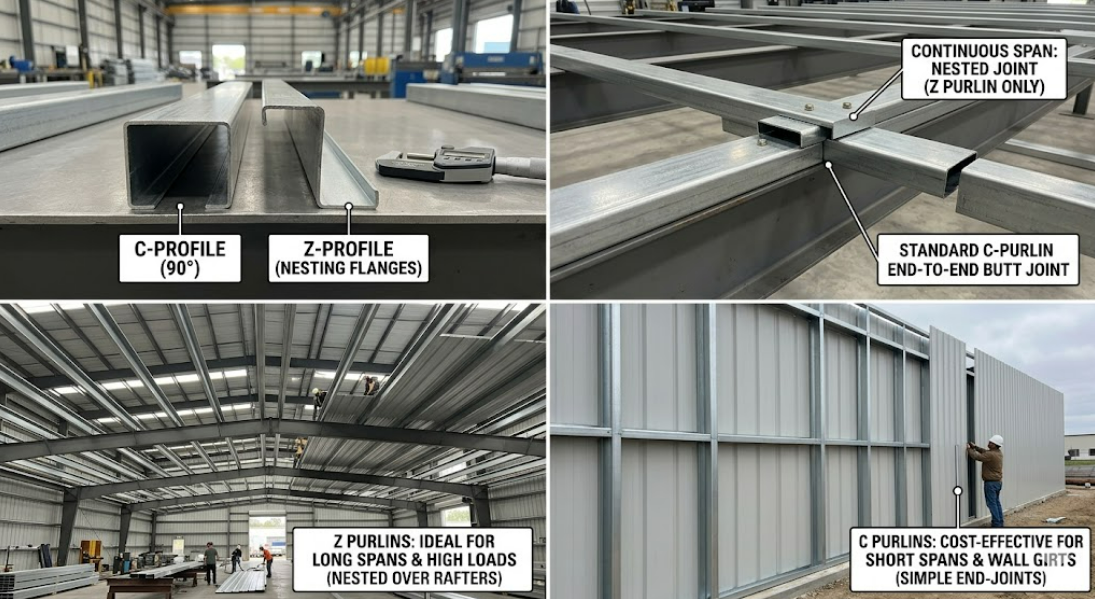

The fundamental difference is that C purlins have equal flanges and are used for simple spans, whereas Z purlins have unequal flanges that allow them to be nested and lapped for continuous span applications.

Technically, the geometry of the C Purlins makes them ideal for starting and ending a run of framing or for use around openings like windows and doors. The "C" shape is symmetrical along the vertical axis, providing a flat surface on both sides for easy attachment to headers or girts. In a typical installation, C-sections are bolted to cleats that are welded to the main rafters. Because they cannot be lapped, the strength of the system is limited to the strength of each individual piece of steel.

In contrast, the Z purlin is designed for structural continuity. By lapping the purlins by a specific length (usually 10% to 15% of the span) over the support, the moment capacity of the section is effectively doubled at the most critical point. This makes the entire roof system much stiffer. This structural behavior is a key reason why Z-sections are the dominant choice for large industrial warehouses where spans can exceed 6 or 7 meters.

Material-wise, both are usually cold-rolled from high-grade galvanized steel. The galvanized coating is crucial as these members are often hidden within the building envelope where moisture can accumulate due to condensation. Using a high-quality supplier ensures that the dimensions are precise, which is vital when you are trying to lap Z purlins; even a few millimeters of deviation can make assembly impossible on a high-wind day atop a steel skeleton. You can find specialized C Purlins that meet these rigorous standards for various construction needs.

Technical Comparison Table

Advantages of Using High-Quality Purlins in Steel Buildings

High-quality steel purlins provide superior structural support, resistance to environmental degradation, and precise dimensions that ensure the seamless assembly of the building's secondary framework.

The use of premium cold-formed sections ensures that the building remains straight and true over decades of service. Low-quality steel can suffer from "spring-back" or twisting, which makes it difficult for the roofing sheets to lie flat. This can lead to gaps in the roof, resulting in leaks and energy inefficiency. By investing in accurately manufactured C Purlins, builders ensure that every bolt hole aligns perfectly with the factory-drilled cleats, significantly reducing the "re-work" time on site.

Another advantage is the environmental resistance provided by hot-dip galvanization. In many industrial environments, chemical fumes or high humidity can accelerate the rusting of structural steel. High-quality purlins are coated with a thick layer of zinc (Z275 or higher), which acts as a sacrificial anode. This protection is essential because purlins are often the most difficult components to replace once a building is fully operational.

Benefits Checklist

1. Lightweight Strength: Reduces the overall weight on the primary foundation.

2. Corrosion Resistance: Galvanized finishes extend the lifespan of the secondary framing.

3. Precision Engineering: Pre-punched holes save hours of drilling during the installation phase.

4. Sustainability: Steel is 100% recyclable, making it an eco-friendly choice for modern green building standards.

Installation Best Practices for Secondary Framing

Proper installation of purlins involves accurate spacing, secure bolting to cleats, and the use of sag rods or bridging to prevent lateral torsional buckling under load.

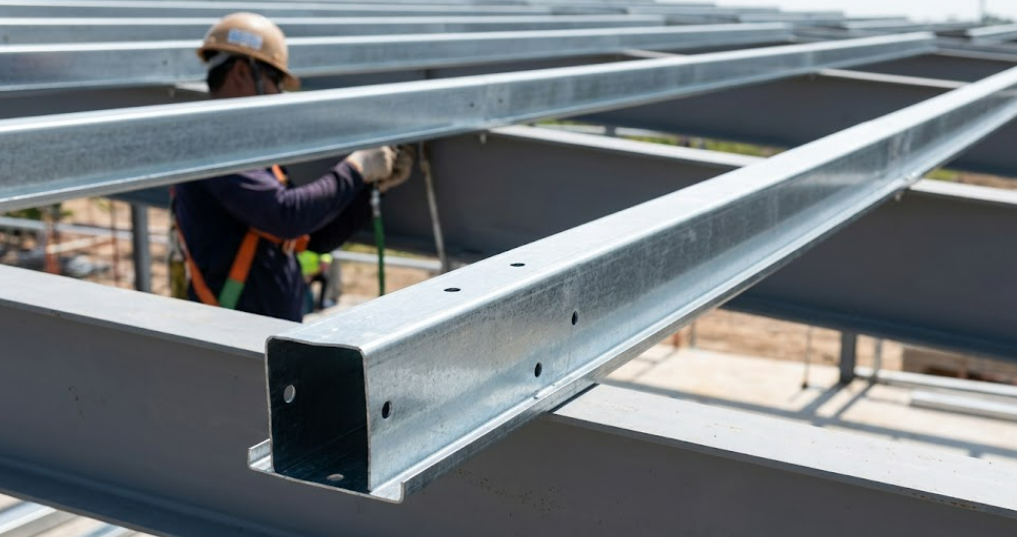

When installing C Purlins, it is critical to ensure that the open side of the "C" faces up-slope on a roof to prevent moisture from pooling inside the channel. For Z purlins, the lapping must be executed exactly according to the engineer's drawings. Short-changing the lap length can lead to structural failure, as the continuity of the beam is compromised. Bolts must be tightened to the specific torque requirements to ensure that the friction between the lapped surfaces contributes to the strength of the joint.

Bridging and sag rods are often overlooked but are essential for the stability of the system. Purlins are prone to twisting (lateral-torsional buckling) before the roof sheets are fully installed. Bridging provides lateral restraint, ensuring that the purlins stay vertical and can support the weight of the installers and the roofing materials. A well-installed bridging system also helps in aligning the purlins so that the roof sheets can be fastened in a straight line.

Key Installation Steps

1. Alignment Check: Ensure rafters are level before hoisting purlins.

2. Correct Lapping: Follow the 10% lap rule for Z-sections over support cleats.

3. Secure Fastening: Use high-strength bolts and washers at every connection point.

4. Install Bridging Early: Add sag rods or mid-span bridging as soon as the purlins are in place to prevent rotation.

Choosing the Right Material for Long-Term Durability

Selecting the correct grade of galvanized steel and the appropriate thickness for your purlins is the most important factor in ensuring the building can withstand local wind speeds and snow loads.

The gauge of the steel, typically ranging from 1.5mm to 3.0mm, determines the load capacity of the section. In coastal areas or regions with high salt spray, even standard galvanization might not be enough; in such cases, thicker coatings or specialized paint systems are applied over the galvanized surface. When sourcing C Purlins, always verify the yield strength of the steel. Most structural purlins are made from S350 or S450 grade steel, providing high tensile strength that allows for thinner, lighter sections.

Environmental factors should also dictate the spacing of the purlins. In areas with high wind uplift, the spacing between the C Purlins must be reduced to ensure the roofing sheets do not tear away from the fasteners. Consulting with a professional supplier who understands the local building codes and material standards is the best way to guarantee that your secondary framing is over-engineered for safety but optimized for cost.

Material Considerations

1. Steel Grade: Higher yield strength (e.g., S350GD) allows for better performance in long spans.

2. Coating Weight: Look for Z275 galvanization for standard industrial environments.

3. Dimensional Accuracy: Ensure the web and flange measurements are within tight tolerances for easy lapping.

4. Pre-Fabrication: Opt for factory-cut and pre-punched sections to eliminate on-site errors.
