Raw metallurgy rarely serves engineering needs directly. It requires a reliable intermediate form. A prime example is the ubiquitous wire rod. It acts as the primary feedstock for a massive array of downstream products. These components range from tiny structural fasteners to massive suspension cables. The business stakes for procurement teams are incredibly high. Selecting the wrong metallurgical structure guarantees trouble. You will face excessive tool wear on the factory floor. You might encounter higher secondary processing costs, like mandatory annealing cycles. Worst of all, you risk catastrophic failure in load-bearing applications.
This article serves as your definitive evaluation framework. We built it specifically for procurement managers and engineers. We will help you align specifications with your exact structural requirements. You will learn how to verify vendor compliance standards effectively. Ultimately, you can audit your current material standards and build a far more resilient supply chain.
Carbon configuration dictates processing: Carbon content (from <0.25% to >1.5%) directly controls the balance between malleability for wire drawing and tensile strength for structural support.
Metallurgical structure impacts bottom-line costs: Advanced controlled cooling methods that achieve a fine sorbitic structure can significantly reduce or eliminate the need for intermediary annealing during cold drawing.
Traceability is non-negotiable: Industrial and construction applications require stringent material test certificates (MTC) and increasingly demand Environmental Product Declarations (EPD) to meet global sustainability standards.
Handling preserves yield: Proper logistics, including precise coil sizing and C-hook handling, prevent edge damage and surface degradation before the material reaches the decoiler.
Chemical composition dictates exactly how a material behaves during secondary processing. Carbon content serves as the primary dial. It balances malleability against final tensile strength. Engineers must match specific steel wire grades to the intended manufacturing method.
Low-carbon materials prioritize ductility. They offer maximum malleability. Factories use this grade for standard drawing processes. It easily forms into wire meshes and fencing. You will find it in general-purpose applications requiring extensive bending. The metal flows through drawing dies without fracturing. It requires minimal force to shape.
High-stress environments demand higher carbon levels. Applications like tire bead wire require extreme fatigue resistance. Mechanical springs and wire ropes rely on high tensile strength to function safely. However, a strict trade-off exists. Higher hardness significantly increases cutting difficulty. It makes wire drawing much harder. Factories must frequently monitor tool wear when processing high-carbon coils.
Manufacturers use extreme cold deformation to forge fasteners and rivets. This requires Cold Heading Quality (CHQ) materials. CHQ demands absolute internal integrity. You cannot tolerate any surface defects. Even a microscopic seam can cause splitting under extreme processing stress. Vendors must implement rigorous quality controls to certify CHQ standards.
Modern advancements continually push metallurgical limits. Micro-alloying introduces elements like vanadium or niobium. This technique improves tensile limits significantly. Crucially, it does not proportionately increase the carbon content. You maintain excellent weldability for complex fabrications. Manufacturers achieve higher strength without sacrificing forming characteristics.
Grade Category | Carbon Content | Key Characteristic | Primary Applications |
|---|---|---|---|
Low-Carbon | < 0.25% | Maximum ductility, highly malleable | Wire mesh, standard drawing, fencing |
Medium/High-Carbon | 0.25% - 1.5% | High tensile strength, fatigue resistance | Mechanical springs, tire bead wire, ropes |
Cold Heading Quality (CHQ) | Varies (Highly controlled) | Zero surface defects, internal purity | Rivets, high-stress fasteners, forged bolts |
Micro-alloyed | Low/Medium + Alloys | High strength, excellent weldability | Complex fabrications, advanced automotive |
Different industries extract entirely different value propositions from raw metal coils. Understanding end-use requirements helps procurement teams source more effectively.
Civil engineering relies heavily on drawn steel. Builders utilize specialized construction steel wire in pre-stressed concrete. It provides the necessary tension for bridges and airport runways. Contractors also use it for crack-control meshes in large concrete slabs. In these large-scale structural projects, wire rod complements heavier foundational materials. For instance, massive concrete pillars utilize heavy Steel Rebar for primary support. Meanwhile, builders install robust Steel Grating for industrial walkways and drainage systems. The wire serves as the binding and secondary reinforcing agent tying these structures together.
Heavy manufacturing demands exact mechanical repeatability. Factories map specific material grades to critical end-use components. Automotive engines require highly refined valve springs. Tires rely on brass-coated tire cords to maintain shape under high speeds. High-strength industrial fasteners secure heavy machinery. Each application dictates precise diameter tolerances and fatigue limits.
Nearly every industry requires anchoring systems. Factories process raw coils into bolts, nuts, and heavy-duty screws. Construction teams use these fasteners to assemble massive architectural frameworks. They are essential for attaching exterior cladding, including durable Corrugated Steel Sheet panels, to warehouse exteriors. Without high-quality fastener stock, structural integrity rapidly degrades.
Purchasing teams must move beyond generic material descriptions. You need to specify exacting technical parameters to ensure seamless factory integration.
Standard diameter ranges typically fall between 5.5mm and 32mm. Precision matters immensely. Buyers must demand strictly controlled weight-per-meter tolerances. Furthermore, coil sizing directly impacts production efficiency. Coil weights generally range from 1 to 3 tons. You must map these coil weights directly against your factory’s specific decoiling machinery constraints. An oversized coil will overload equipment and halt production.
Cooling is not a passive event. It actively determines the metal’s internal structure. Modern mills utilize a precise two-stage cooling process.
Rapid Water Cooling: The hot material exits the rolling mill and immediately enters water boxes. This rapidly drops the surface temperature.
Precise Air Cooling: The material forms loops on a conveyor. Fans apply controlled air cooling at rates between 0.5 and 15°C per second.
This process achieves a uniform sorbitic structure. A fine sorbitic structure is highly desirable. It reduces secondary processing costs by minimizing required annealing cycles during aggressive cold drawing.
You must carefully assess the surface oxide scale. Hot rolling naturally produces an oxidized layer. The thickness and chemical composition of this scale matter greatly. A thinner, highly predictable scale layer optimizes subsequent descaling processes. Whether your factory uses acid pickling or mechanical bending to break the scale, predictable surface conditions accelerate production.

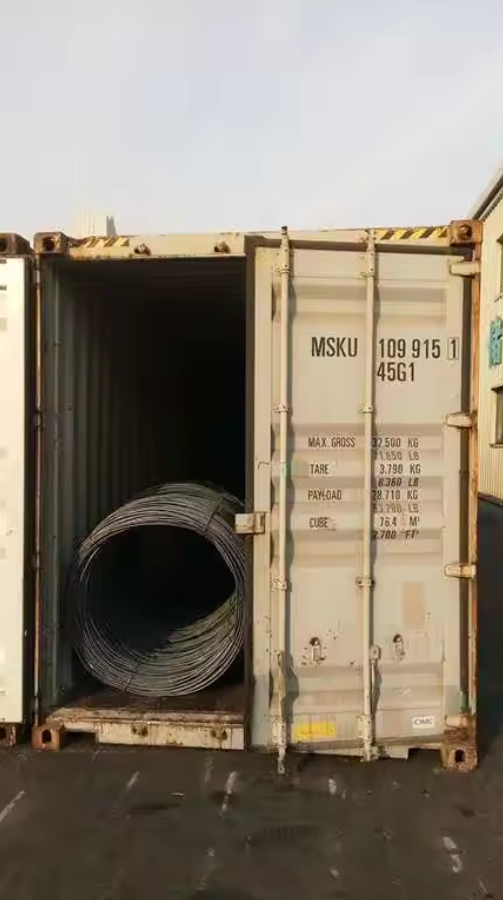

Even perfectly manufactured material can fail if handled poorly. Operational risks occur primarily during transit and secondary processing.
Coils are highly vulnerable to corrosion and mechanical deformation before processing. Facilities must enforce strict handling protocols.
Use Dedicated C-Hooks: Forklifts easily crush coil edges. Mandate C-hook lifting attachments to preserve coil geometry.
Maintain Ground Clearance: Never store metal directly on concrete floors. Use wooden pallets or storage racks to block moisture absorption.
Limit Stacking Heights: Stacking coils too high deforms the bottom layers. It alters the internal wire dimensions before drawing.
Climate Control: Apply anti-rust oils if storing material in high-humidity environments.
Operational risks spike during wire drawing and surface treatments like galvanizing or phosphating. Inconsistent chemistry is a major threat. Hidden internal inclusions act as stress points. They cause frequent line breaks during high-speed drawing. Every break forces costly production downtime. The operator must stop the line, re-thread the die, and restart.
Always establish a baseline assumption regarding die wear relative to your selected material grade. Cheaper, inconsistent material seems cost-effective at purchase. However, it often inflates consumable costs on the manufacturing floor. Abrasive surface scale or uneven hardness destroys expensive drawing dies prematurely.
Sourcing raw materials requires extensive supply chain vetting. You must evaluate a vendor’s manufacturing consistency and operational breadth.
Establish a rigid baseline requirement for quality standards. Accept nothing less than ISO-certified manufacturing. Require third-party inspections from recognized bodies like SGS or Bureau Veritas. Furthermore, demand comprehensive Mill Test Certificates (MTC). The MTC must prove exact chemical compositions and mechanical properties. It should align perfectly with recognized global standards like ASTM, DIN, or GOST.
Assess a supplier’s ability to fulfill diverse project needs simultaneously. A strong vendor handles complexity well. Evaluate if they can supply specialized steel wire rod alongside bulk structural materials. Can they seamlessly deliver heavy Round Steel bars for your machining departments in the same shipment? Consolidating suppliers optimizes ocean freight and drastically reduces internal procurement overhead.
Factor environmental compliance into your long-term sourcing strategy. Global markets increasingly penalize high-carbon manufacturing. Note how your vendors produce their steel. Vendors utilizing Electric Arc Furnaces (EAF) with high scrap integration offer a strategic advantage. Suppliers providing verified Life Cycle Assessments (LCA) or Environmental Product Declarations (EPD) help you meet strict international regulations.
Sourcing industrial steel is never a simple commodity purchase. It represents a precise calculation of chemical precision, metallurgical structure, and supply chain reliability. Selecting the optimal grade directly impacts your factory’s tool lifespan and operational uptime. We advise procurement teams to base final vendor selections on a careful combination of exact processing requirements and documented quality assurance.
Always match coil sizes to your machinery limits. Audit your current specifications against recent factory Mill Test Certificates. If you plan to change suppliers or adopt a new alloy, always request sample coils for pilot drawing runs. Testing material dynamically ensures your production lines remain efficient, predictable, and highly profitable.
A: Standard rod handles basic drawing and bending tasks like fencing. CHQ rod undergoes extreme quality control to eliminate all internal inclusions and surface defects. Manufacturers require CHQ specifically for intense cold deformation processes, like forging rivets and high-strength bolts, where standard material would crack or split.
A: Precise, multi-stage cooling controls the metal’s microscopic grain. A highly controlled cooling rate (0.5-15°C/s) creates a uniform sorbitic structure. This structure is highly ductile. It significantly reduces or entirely eliminates the need for expensive intermediate annealing (heating) cycles during downstream cold drawing.
A: Standard coil weights range from 1 to 3 tons. Procurement must match this weight to their factory’s decoiling equipment. Buying a 3-ton coil for machinery rated at 1.5 tons causes immediate logistical failures, while undersized coils force operators to stop and reload machinery too frequently.
A: Chinese standards generally define wire rod strictly as hot-rolled round steel between 5mm and 9mm in diameter. In contrast, international standards like ASTM encompass a broader range of shapes and larger diameters, sometimes extending up to 32mm depending on the specific manufacturing category.
A: Micro-alloying adds tiny amounts of elements like vanadium or niobium to the steel matrix. This technique dramatically increases the material's tensile strength without requiring a higher carbon content. Consequently, builders gain a stronger reinforcement material that still retains excellent ductility and weldability.
