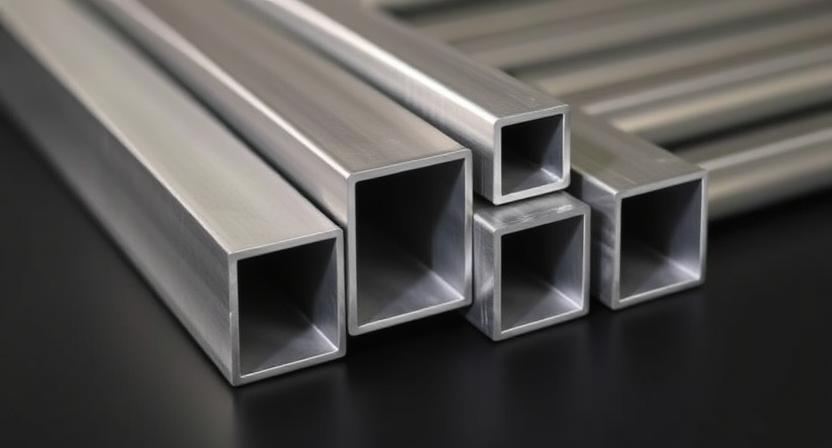

What Size Square Tubing Fits inside Each Other

Square tubing has been a staple in construction and manufacturing for decades due to its versatility and strength. However, one question that often arises is, “What size square tubing fits inside each other?” This query is crucial for professionals and DIY enthusiasts alike, as it directly impacts the efficiency and integrity of their projects. In this comprehensive guide, we will delve into the world of square tubing, exploring the dimensions, tolerances, and factors that determine which sizes are compatible for nesting. Whether you’re looking to streamline your construction process or simply curious about square tubing, this article aims to provide you with all the answers you need.

Understanding Square Tubing Dimensions

Square tubing is characterized by its uniform width and height, which is measured in inches or millimeters. The key dimensions to consider are the outer width and height, wall thickness, and the inner width and height. For instance, a piece of square tubing with a nominal size of 2 inches will have an outer dimension of approximately 2 x 2 inches, but the actual size may vary slightly due to manufacturing tolerances. The wall thickness, which can range from 1/16 inch to 1/4 inch or more, determines the strength and weight of the tubing. The inner dimensions, crucial for determining which tubing fits inside another, are calculated by subtracting twice the wall thickness from the outer dimensions.

To illustrate, a standard 2-inch square tubing with a wall thickness of 1/8 inch would have an inner dimension of approximately 1.75 x 1.75 inches. This means that to find a square tubing that fits inside, you would look for a tubing with an outer dimension of less than 1.75 inches. It’s also important to note that square tubing sizes can vary slightly due to the manufacturing process, so consulting a detailed specification chart is advisable when selecting tubing for nesting.

The Importance of Tolerances in Square Tubing

Tolerances in square tubing refer to the allowable variation in the dimensions of the tubing. These tolerances are critical when determining which sizes of square tubing fit inside each other. For example, a 2-inch square tubing intended to fit inside another piece of square tubing should not exceed the inner dimensions of the outer tubing, taking into account the maximum tolerance for both pieces. If the outer tubing has a maximum inner dimension of 1.76 inches, then a 2-inch square tubing with a minimum inner dimension of 1.75 inches would fit perfectly, even considering the tolerances.

Manufacturers typically provide tolerance specifications for their square tubing products. These tolerances can vary based on the material, manufacturing process, and intended use of the tubing. For instance, hot-rolled steel square tubing might have different tolerances compared to cold-rolled or stainless steel tubing. Understanding these tolerances is crucial for ensuring a proper fit, especially in applications where precision is paramount, such as in structural frameworks or mechanical components.

Practical Applications of Nested Square Tubing

The ability to nest square tubing of different sizes has a wide range of practical applications across various industries. One of the most common uses is in the construction of scaffolding and temporary structures, where smaller tubes are nested inside larger ones for easy transport and storage. This not only saves space but also makes it easier to assemble and disassemble the structures as needed.

Another significant application is in the manufacturing of adjustable furniture and equipment. For instance, office desks with height-adjustable legs often use nested square tubing. By selecting the appropriate sizes, manufacturers can create a smooth, stable adjustment mechanism that allows users to easily change the desk height to their preference.

Nested square tubing is also widely used in the automotive and aerospace industries for creating lightweight yet strong frames and supports. By carefully selecting tubing sizes and wall thicknesses, engineers can design components that meet strict weight and strength requirements, contributing to overall vehicle efficiency and performance.

Conclusion

Understanding what size square tubing fits inside each other is essential for anyone working with this versatile material. By considering the dimensions, tolerances, and practical applications, you can make informed decisions that will enhance the efficiency and effectiveness of your projects. Whether you’re constructing a simple framework or designing a complex mechanical component, the right square tubing can make all the difference. We hope this guide has provided you with the insights you need to select and use square tubing with confidence.
