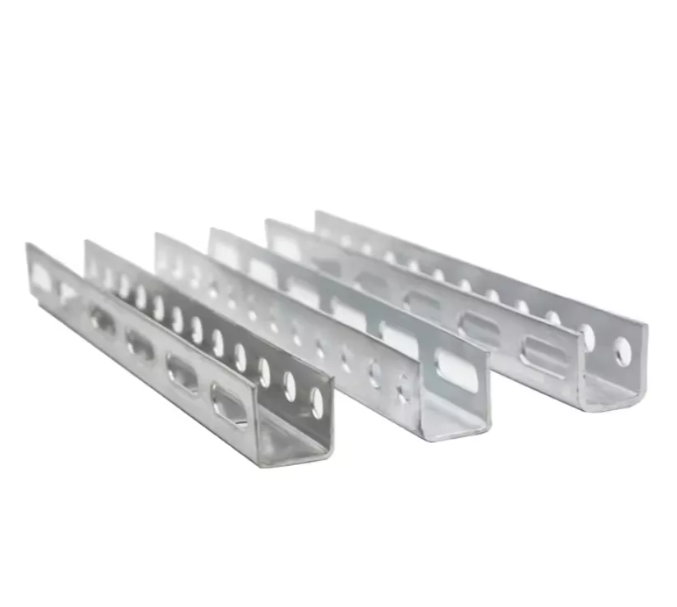

C Channel Standard Sizes: A Complete Reference Guide

Introduction

C Channel is an essential material in construction, manufacturing, and transportation due to its strength and versatility. This guide delves into the standard sizes, key features, and diverse applications of C Channel. By understanding the various sizes and specifications, you can ensure that you select the perfect C Channel for your project’s requirements. Let’s explore the fundamental details of C Channel and how it can meet the needs of your next project.


What is a C Channel?

Definition and Structure

A C Channelis a type of structural beam shaped like the letter "C." Its distinctive design features a flat web with two flanges extending outward, forming the characteristic "C" shape. This configuration provides optimal strength and stability for a wide range of applications. The open design facilitates efficient load distribution, which makes C Channel a preferred choice in construction, manufacturing, and transportation. Renowned for its ability to evenly distribute loads and withstand both vertical and horizontal forces, the C Channel offers versatility across various industries. Typically crafted from steel or other robust materials, it strikes an ideal balance between strength and weight. While its design is straightforward, it delivers exceptional support, making it the go-to option for structural applications that demand both durability and flexibility.

Key Characteristics

  • Width: This is the total distance measured from the back of the "C" to the front end of the flanges. It's crucial in determining the beam's capacity to support weight horizontally. The width of the beam can affect its ability to handle forces applied from the sides and impact the beam's overall stability.

  • Depth: Refers to the vertical length between the top and bottom of the "C" shape. Depth is essential for the beam’s overall strength and its ability to withstand vertical loads. A deeper beam can support larger vertical forces, making it a common choice for heavy-duty structural applications.

  • Flange Thickness: The thickness of the legs or flanges that extend out from the web. Flange thickness influences the strength of the beam in bending and compression. Thicker flanges help distribute the load more evenly and increase the beam's resistance to bending under pressure.

  • Web Thickness: This is the thickness of the central "backbone" of the channel. It plays a critical role in how the beam handles shear forces, which are forces that try to cause sliding along the beam. A thicker web provides better resistance to shear, making the beam more suitable for high-stress environments.

  • Fillet Radius: The inner corners of the C Channel are rounded to a specific radius, known as the fillet radius. While this isn't often specified by manufacturers, it can affect the overall strength and durability of the beam, especially in applications involving heavy loads or fatigue. A well-designed fillet radius can reduce stress concentrations at the corners, increasing the beam's longevity.

These key components contribute significantly to the beam's strength, flexibility, and suitability for various structural tasks, making C Channel an essential material for construction and engineering projects.

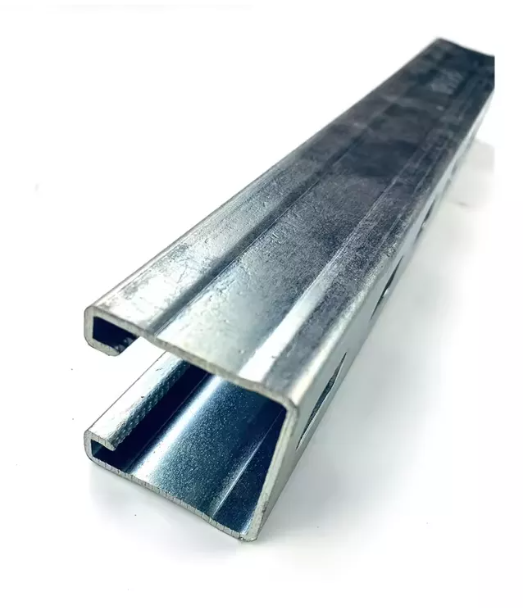

Corrugated Steel Sheet sizes of steel channel Steel Wire

Standard Sizes of C Channel

C Channel comes in various sizes, providing the flexibility needed for different applications. Understanding the key dimensions is essential to ensure you choose the correct size for your project. Here’s a breakdown of the standard sizes:

Width
C Channels are available in widths ranging from 1.35” to 3.15” (3.4-8 cm). The width plays a crucial role in the beam's ability to support loads and maintain structural integrity. A wider C Channel typically provides greater load-bearing capacity, making it ideal for heavy-duty applications.

Depth
The depth of C Channels typically spans from 3” to 12” (7.6-30.5 cm). A greater depth adds strength and stability, making it ideal for larger construction and industrial projects. Deeper channels are commonly used in taller structures or where larger spans are needed, as they provide enhanced bending resistance.

Thickness
C Channels come in thicknesses from 0.12” to 0.4” (3-10 mm). The thickness determines how much weight the beam can handle. Thicker options are better suited for heavy-duty applications. The thickness of the web and flanges must be matched to the expected load and environmental conditions to ensure the beam will perform effectively.

Length
Standard lengths for C Channels range from 4’ to 20’ (1.22-6.1 m). These lengths can be customized to fit specific project requirements, offering versatility and convenience. Custom lengths are commonly used in large-scale construction projects, where beams need to be cut to specific dimensions for easier installation and better material use.

Each of these dimensions is vital in selecting the right C Channel for your needs. By understanding these size options, you can ensure that your beams will perform effectively in your construction, manufacturing, or transportation projects. Always make sure to consider the load requirements and the specific application before choosing a size.


Understanding C Channel Designations

When choosing C Channel, it’s essential to understand how their sizes are labeled. Manufacturers use a specific format that makes it easy to determine the beam's dimensions, ensuring you select the perfect size for your construction or manufacturing needs.

Section Reference
C-channel sizes are typically denoted in the format "232 C 18." Here’s how to interpret each part:

  • First three digits: These indicate the depth of the channel, measured in millimeters. For example, "232" signifies that the depth is 232mm.

  • Letter: This denotes the profile type. "C" refers to a C-section, meaning the beam is shaped like the letter C.

  • Last two digits: These indicate the material thickness. "18" corresponds to a thickness of 1.8mm.

This system makes it easier for engineers and designers to quickly identify the right C Channel size for their projects, whether for framing, support, or any structural application. Understanding the format helps avoid mistakes and ensures you are selecting the correct beam based on your needs.

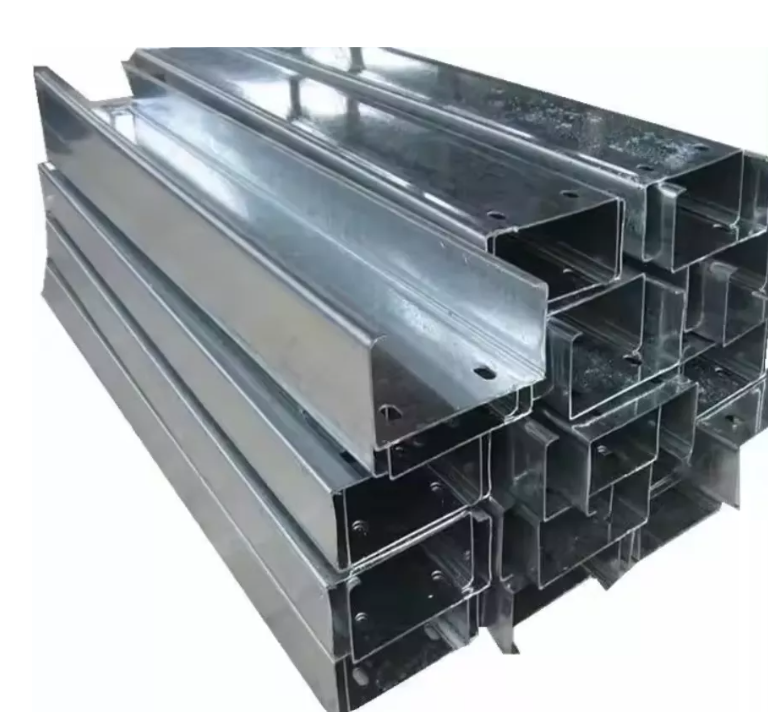

Corrugated Steel Sheet sizes of steel channel Steel Wire


Common Applications of C Channel

Construction and Building
C Channel is commonly used for structural support in construction projects. They’re perfect for framing, posts, and building supports. Their durability and strength make them ideal for carrying heavy loads in building structures, from residential to commercial projects. You’ll often see them in doorways, tracks, sliders, and building corners. In large commercial buildings, C Channels can be used as support beams for floors and roofs.

Manufacturing
In manufacturing, C Channel is a key component in machinery and industrial equipment. They provide strength and stability in the production of various machines. These beams are often used in conveyor systems, heavy-duty frames, and structural components for factory setups. Their versatility ensures they’re used in a wide range of equipment and machinery. Furthermore, C Channels are used in supporting large machinery where high load-bearing capacity is necessary.

Transportation
C Channel is also used in transportation applications. You’ll find them in vehicle frames and other transport-related systems. Their ability to withstand harsh conditions while maintaining structural integrity makes them an excellent choice for automotive and transport infrastructure. C Channels are also found in trailers, truck beds, and rail systems. The strength and lightweight nature of C Channels make them perfect for the transportation sector, reducing the overall weight of vehicles while maintaining strength.


How to Choose the Right C Channel Size for Your Project

Load Requirements

The size and thickness of C-channel beams play a crucial role in their strength. Larger, thicker beams can handle heavier loads, making them ideal for structural applications. It’s important to match the beam size to the load capacity required for your project. For example, beams with a greater depth can support larger forces, while thicker flanges improve the load distribution. It's also essential to check the load rating provided by the manufacturer to ensure that the beam meets the specifications for your intended use.

Application Requirements

When choosing the right C-channel, consider factors like location, environmental conditions, and the purpose of the beam. Will it be exposed to moisture or extreme temperatures? Will it be part of a support system or used for decorative framing? These factors help determine the best size and material for your needs. For outdoor applications, corrosion-resistant coatings or stainless steel C-channels may be required to ensure longevity. Additionally, for applications exposed to high heat or heavy stress, C Channels with higher material strength should be selected.


Manufacturing Process of C Channel Steel

Hot-Rolled vs. Cold-Rolled

C Channel steel are typically made through hot-rolling or cold-rolling processes. Hot-rolling involves heating the steel to high temperatures, making it easier to shape. This results in a more flexible, softer beam. On the other hand, cold-rolling is done at room temperature, producing a stronger, more brittle steel. Each process has its advantages depending on the application. Hot-rolled C Channels are typically used for general applications where flexibility is needed, while cold-rolled ones are more commonly used in structural applications where higher strength and durability are required.

Industrial Applications

C Channel steel beams are commonly used in a variety of industrial settings. In construction, they serve as structural supports, providing strength and durability. Manufacturing plants use them for framing machines and industrial equipment. Additionally, C Channel is crucial in the transportation sector, where they are used in vehicle frames and structural components. Their versatility makes them a go-to choice across different industries.

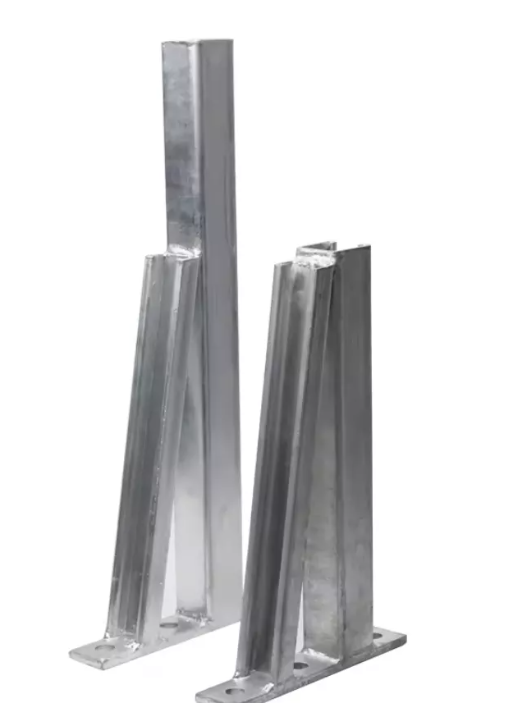

Corrugated Steel Sheet sizes of steel channel Steel Wire


Why Choose C Channel for Your Project?

Versatility
C Channel is incredibly versatile, making it suitable for various structural applications. Whether you're building a support frame, creating a foundation for machinery, or constructing a vehicle frame, C Channels offer a reliable solution. They are used in everything from commercial buildings to industrial equipment and transportation systems.

Strength-to-Weight Ratio
One of the key reasons to choose C Channel is their exceptional strength-to-weight ratio. These beams provide maximum strength while remaining lightweight, making them easier to handle and install. Compared to other structural materials, C Channels offer impressive durability without adding unnecessary weight to your project.


FAQs

Q: What are C Channel used for?

A: C Channel is used in construction, manufacturing, and transportation. It provides structural support in building frames, machinery foundations, and vehicle structures due to its strength and versatility.

Q: How does C Channel compare to U Channel?

A: C Channel has tapered flanges and is generally larger and stronger than U Channel. It is better suited for structural applications that require more support and is available in larger sizes.

Q: What sizes are available for C Channel?

A: C Channel comes in various sizes, with widths ranging from 1.35" to 3.15" (3.4-8 cm), depths from 3" to 12" (7.6-30.5 cm), and thicknesses between 0.12" to 0.4" (3-10 mm).

Q: What material is commonly used for C Channel?

A: C Channel is commonly made from steel, particularly carbon steel, due to its high strength and durability. Stainless steel and galvanized steel are also used for corrosion-resistant applications.

Q: How do I choose the right C Channel size for my project?

A: When selecting a C Channel size, consider the load requirements, the environment (e.g., moisture, temperature), and the intended use. Larger, thicker channels are ideal for heavy-duty applications, while lighter channels are better for smaller, less demanding projects.

Q: Are C Channel customizable?

A: Yes, C Channel is customizable in terms of length, thickness, and material type. Manufacturers can produce custom sizes and coatings to meet specific project requirements.


Conclusion

C Channel beams are known for their versatility, lightweight nature, and exceptional strength, making them the go-to choice for a wide range of structural applications. Their outstanding strength-to-weight ratio not only enhances durability but also simplifies handling and installation. Whether employed in construction, manufacturing, or transportation, C Channels consistently provide reliable support for even the most demanding projects. By understanding the various sizes and specifications of C Channels, you can confidently select the ideal beam that meets the exact requirements of your project, ensuring both performance and efficiency.
